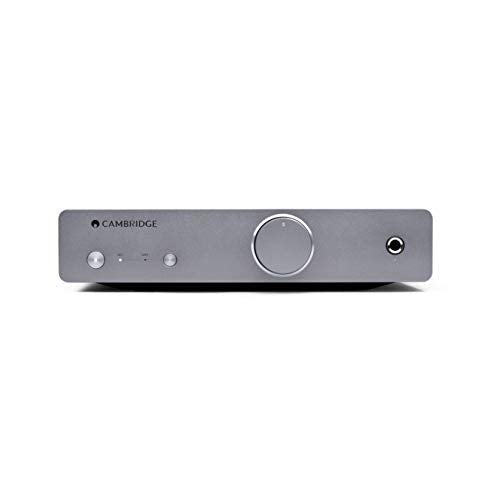

Cambridge Audio Alva Duo | Phono Preamp for Moving Magnet & Moving Coil Turntables

Brand: Cambridge Audio

Color: Silver

Features:

• ✓ DESIGNED FOR VINYL – Cambridge Audio’s Alva Duo was designed to give you a superb sonic experience from your favorite record collection using its state-of-the-art switch mode power supply and a new surface mounted circuit board.
• ✓ ATTENTION TO DETAIL – The Alva Duo's switch mode power supply and surface mount technology delivers short signal paths and a faster response with precision and lower background noise so you don't hear a hum over the vinyl's low-level signals.
• ✓ SUBSONIC FILTER & BALANCE CONTROL – The Alva Duo will even work if your vinyls are a little worse for wear. The subsonic filter and balance control eliminate low frequency rumbles from imperfections in your vinyl for an accurate soundstage.
• ✓ HEADPHONE AMPLIFIER – Cambridge added a unique 6.35mm headphone jack directly into the phono stage so you can listen in private. The integrated headphone output also means no need to turn on your amplifier just to power your headphones.
• ✓ TECH SPECS - MAX POWER CONSUMPTION 10W, CARTRIDGE SUPPORT Moving Magnet | Moving Coil, GAIN @ 1KHZ MM: 39dB | MC: 60dB, NOMINAL OUTPUT 300mV, SENSITIVITY FOR NOMINAL OUTPUT MM: 3.35mV | MC: 305uV, DIMENSIONS 1.9" x 8.5" x 6.2", WEIGHT 2.1lbs

Binding: Electronics

model number: C11027

Part Number: DUO

Details: Squeeze every inch of detail from your record collection with our highest quality moving magnet and moving coil phono stage, with integrated headphone amp; the Duo Phono Preamplifier. MAX POWER CONSUMPTION 10W CARTRIDGE SUPPORT Moving Magnet | Moving Coil GAIN @ 1KHZ MM: 39dB | MC: 60dB NOMINAL OUTPUT 300mV SENSITIVITY FOR NOMINAL OUTPUT MM: 3.35mV | MC: 305uV EQUIVALENT INPUT NOISE (A-WEIGHTED) MM: ~0.09uV | MC: ~0.08uV RIAA CURVE ACCURACY +/- 0.3dB 30Hz-50Hz SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V OUTPUT (20HZ-20KHZ BW) MM: >90dB | MC: >70dB THD+N 1KHZ (20-20KHZ BW) MM: <0.0025% | MC: <0.20% INPUT IMPEDANCE MM: 47k Ohms | MC: 100 Ohms INPUT CAPACITANCE 100pF OVERLOAD MARGIN >30dB CROSSTALK @ 10KHZ MM: >85dB | MC: 75dB DIMENSIONS (H X W X D) 48 x 215 x 159 mm (1.9 x 8.5 x 6.2") WEIGHT 0.95kg (2.1lbs)

EAN: 5055300414588

Package Dimensions: 12.2 x 12.1 x 3.4 inches
